Product applications
Air curtains are advanced, high-velocity fans that establish an imperceptible barrier of air across doorways. This innovative solution effectively segregates indoor and outdoor environments while maintaining distinct temperature zones. By preventing the loss of conditioned air to the outside, air curtains play a pivotal role in energy conservation. Additionally, they act as a formidable shield against dust infiltration, smoke penetration, and the entry of flying insects, ensuring a cleaner and more controlled indoor atmosphere.
Guide louver
New guide louver design, can be adjusted according to different wind direction.
High Quality Ball Bearing
The use of high-quality ball bearings instead of hydraulic bearings, longer life, to ensure that the motor runs more smoothly and quietly.

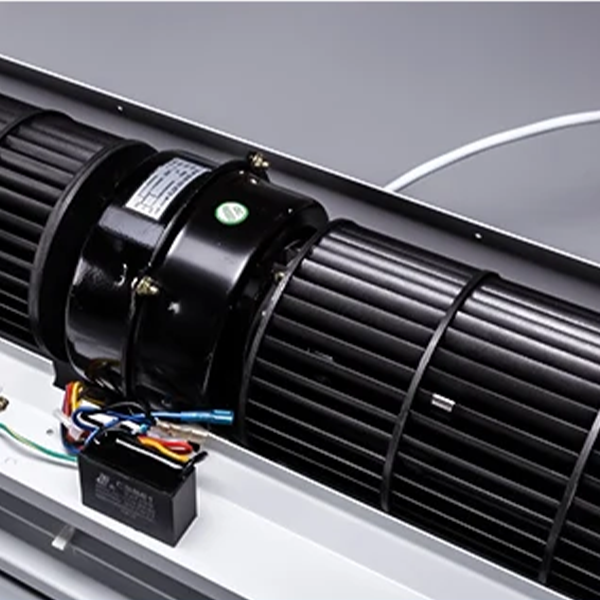

100%Copper Wire Motor
Greater torque, higher efficiency, more compact structure, built-in overheating protection device, quality assurance
Low Noise Multi-blade Impeler
Injection molded, integrated windmill, light blade, high strength, low noise
Product Dimensions Diagram
product specifications
| Model | Rated voltage
(V) | Rated frequency
(Hz) | Powe
(W) | Wind speed
(m/s) | Air volume
(m3/h) | Noise
dB(A) | Installation
height
(m) | Dimensions
(mm) | Net weight
(kg) |
| FM3509 | 220 | 50 | 135/115 | 11-13 | 2350 | 55 | 3.0-3.5 | 920X207X175 | 11.0 |
| FM3509Y | 220 | 50 | 135/115 | 11-13 | 2350 | 55 | 3.0-3.5 | 920X207X175 | 11.0 |
| FM3512 | 220 | 50 | 175/164 | 11-13 | 3050 | 57 | 3.0-3.5 | 1200X207X175 | 13.0 |
| FM3512Y | 220 | 50 | 175/164 | 11-13 | 3050 | 57 | 3.0-3.5 | 1200X207X175 | 13.0 |
| FM3515 | 220 | 50 | 232/210 | 11-13 | 3950 | 59 | 3.0-3.5 | 1500X207X175 | 16.0 |
| FM3515Y | 220 | 50 | 232/210 | 11-13 | 3950 | 59 | 3.0-3.5 | 1500X207X175 | 16.0 |
| FM3518 | 220 | 50 | 275/218 | 11-13 | 4500 | 62 | 3.0-3.5 | 1800X207X175 | 22.0 |
| FM3518Y | 220 | 50 | 275/218 | 11-13 | 4500 | 62 | 3.0-3.5 | 1800X207X175 | 22.0 |
| FM3520 | 220 | 50 | 293/240 | 11-13 | 4700 | 64 | 3.0-3.5 | 2000X207X175 | 24.0 |
| FM3520Y | 220 | 50 | 293/240 | 11-13 | 4700 | 64 | 3.0-3.5 | 2000X207X175 | 24.0 |
